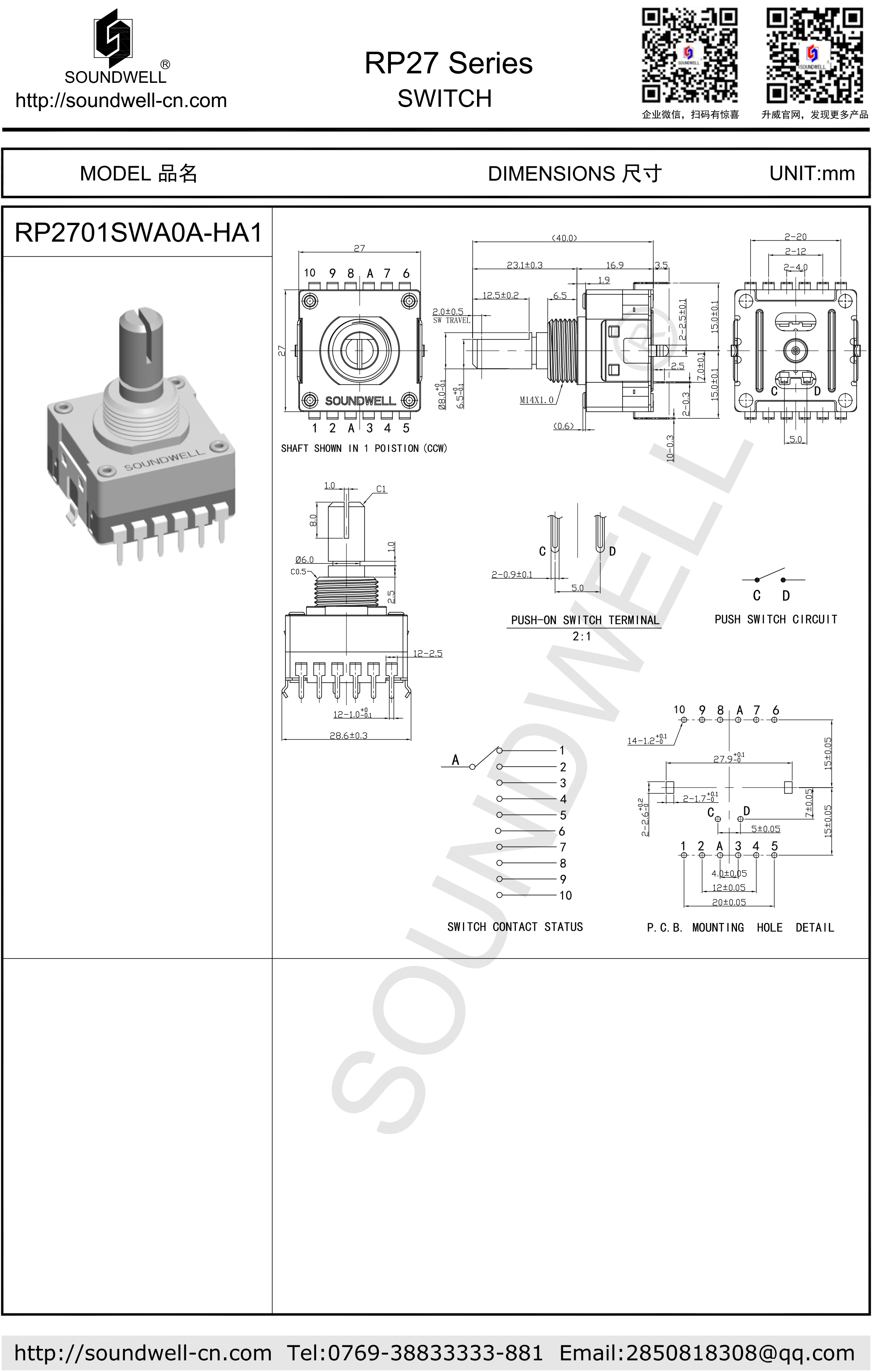

| Encoder model: | RP27 |
| name: | With Push Band Switch |
| Main specifications: |
Dimensions: 27mmX27mm; |
| Features: |
Metal shaft handle, crisp and obvious positioning, good sealing and high reliability. |
| Application areas: | Mainly used in gas stoves, microwave ovens, multimedia audio / amplifiers and other household appliances; the main functions are function switching, speed adjustment, temperature adjustment, etc. |
一、MECHANICAL CHARACTERISTIC
1、Rotational torque ：400~600gf.cm
2、Step angle：36°±3°
3、Number of detent ：10 detents
二、ELECTRICAL CHARACTERISTIC
1、Contact resistance ：100mΩ Max
2、Rating power ：DC30V 0.3A
3、Insulation resistance ：100M? 1 Minute at DC 500V
4、Dielectric voltage ：1 Minute at AC 500V
三、ENDURANCE CHARACTERISTIC
1、Rotational life ：30,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
