Switch model： |
RS1706 series |
|
| Applications： |
Microwave oven, washing machine and other white household appliances, can also be used in multimedia audio/power amplifier, medical equipment. |
|
| Product Features: |
13 positions available with clear sense of clicks; Available in various shaft options; |
|
| Functions： |
The main functions are function switching, speed control, temperature adjustment and so on. |
|
| Main Specifications: |

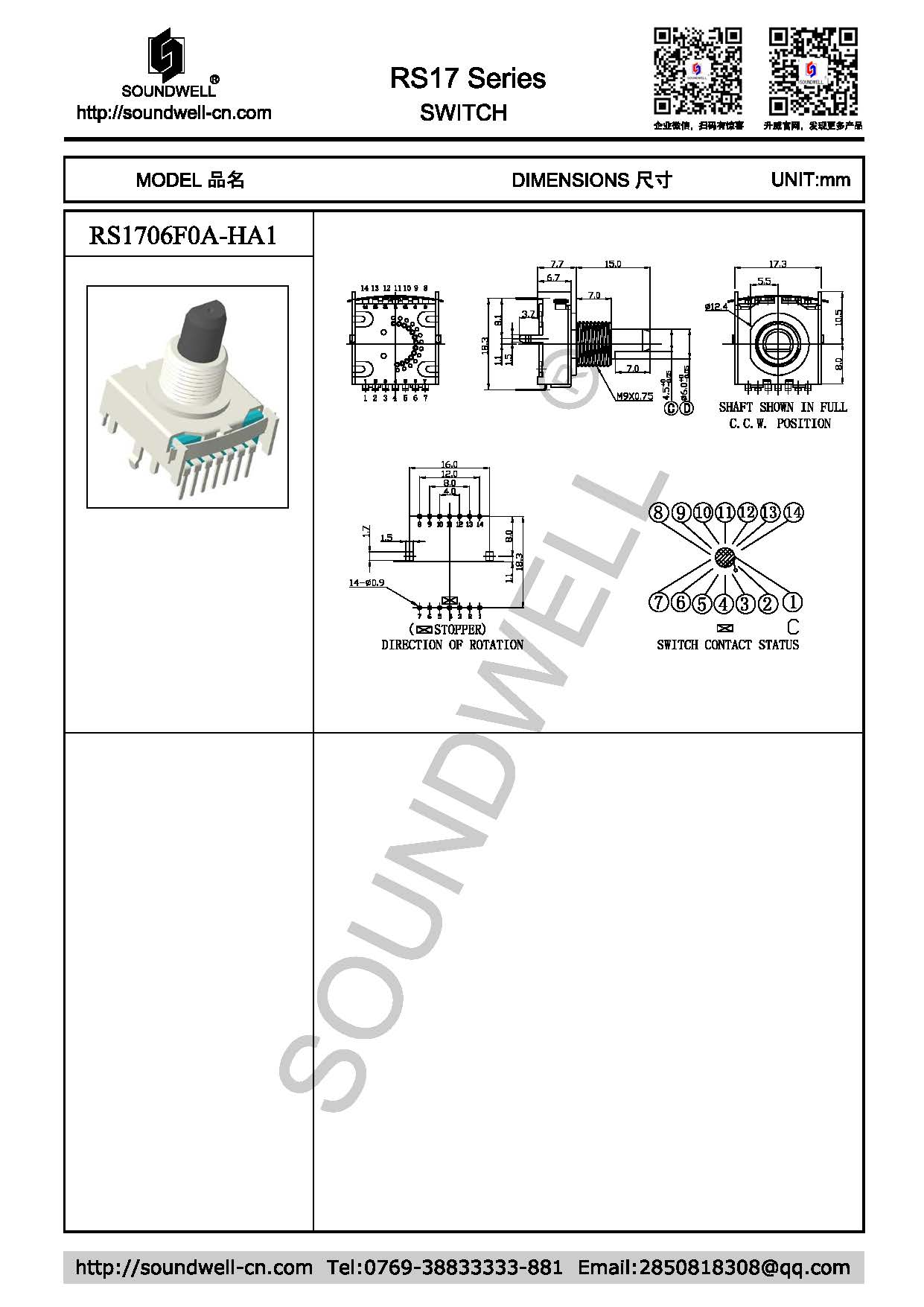

Dimensions: 17mm |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100~400gf.cm
2. Step angle: 15°±3°
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 50mΩ Max
2. Power rating: DC16V 0.3A
3. Number of detent: 13
4. Insulation resistance: 100M? 1 Minute at DC 100V
5. Dielectric voltage: 1 Minute at AC 100V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational Life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
