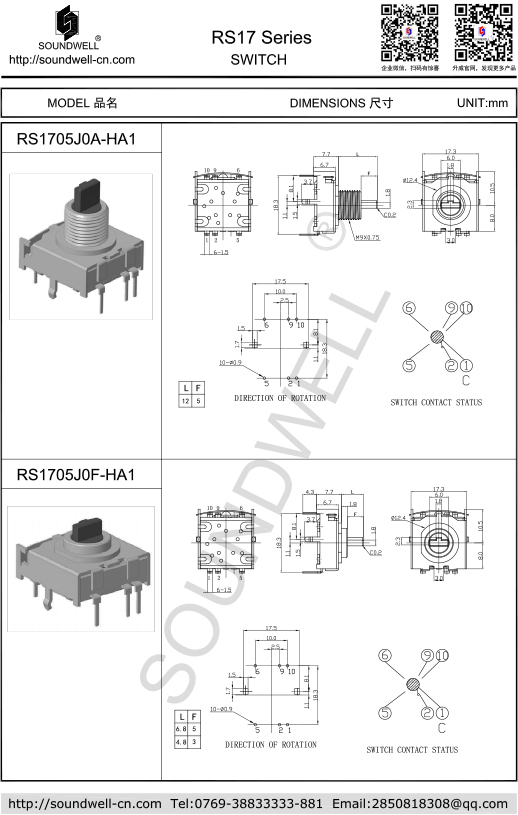

Switch model： |
RS1705 series |
|
| Applications： |
Home appliances such as micro-wave ovens, washing machines, audio devices, health care systems or other electronic products; |
|
| Product Features: |
5 positions available with clear sense of clicks; Available in various shaft options; |
|
| Functions： |
The main functions are function switching, speed adjustment, temperature adjustment and so on. |
|
| Main Specifications: |
Dimensions: 17mm Rated power: DC 16V 0.3A Contact resistance: 100mΩ Max Number of positions: 5 Operating temperature: -10℃ ～70℃ Rotational life: 10,000 cycles Min |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 100~400gf.cm
2. Number of detent: 5
3. Step angle: 72°±3°
4. Total rotational angle: 360°
TWO、ELECTRICAL CHARACTERISTIC
1. Contact Resistance: 100mΩ Max
2. Power Rating: DC16V 0.3A
3. Insulation Resistance: 100MΩ 1 Minute at DC 100V
4. Dielectric Voltage: 1 Minute at AC 100V
THREE、ENDURANCE CHARACTERISTIC
1、Rotational Life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
