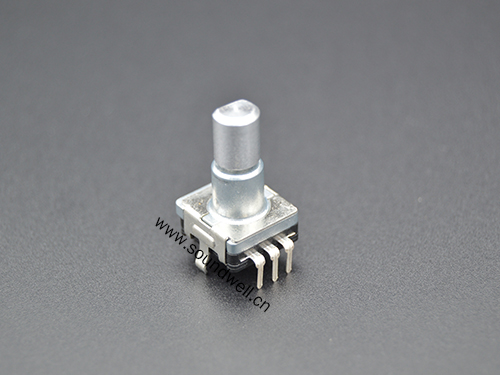

RS11 reset switch product introduction
Reset switch model: RS1101SWN0D-HA1
RS11 reset switch features: the body thickness is thin, can be rotated left and right and automatically reset, stable performance, can be equipped with a push switch function (with 0.5mm and 1.5mm two compression strokes for selection).
RS11 reset switch applications: car audio, car navigation, multi-coal audio, amplifier, household appliances, etc.
Main functions: page turning, FM, volume adjustment, menu selection, etc.
RS11 reset switch product specifications
Reset switch specifications: Dimensions: 11mm;
Rated power: DC5V 10mA;
Working temperature: -20 ° C ~ 70 ° C;
Rotation life: more than 30,000 times;
Press switch life: more than 20,000 times.
一、MECHANICAL CHARACTERISTIC
1、Rotational torque：30~300gf.cm
2、Rotational angle：CW：45°±10° CCW： 45°±10°
二、ELECTRICAL CHARACTERISTIC
1、Contact resistance：Less than1Ω
2、Rating power：DC5V 10mA
3、Insulation resistance：10M? 1 Minute at DC 300V
4、Dielectric voltage：1 Minute at AC 300V
三、PUSH SWITCH PORTION
1、Operating force of switch：300~900gf
2、Contact resistance ：100mΩ Max
3、Rating power：DC16V 10mA
4、Insulation resistance：10M? 1 Minute at DC 50V
5、Dielectric voltage：1 Minute at AC 300V
四、ENDURANCE CHARACTERISTIC
1、Rotational life：30,000 cycles Min
2、Switch operating life：20,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
The RS11 reset switch specification is for reference only. The reset switch handle shape and handle size can be customized according to customer requirements.
