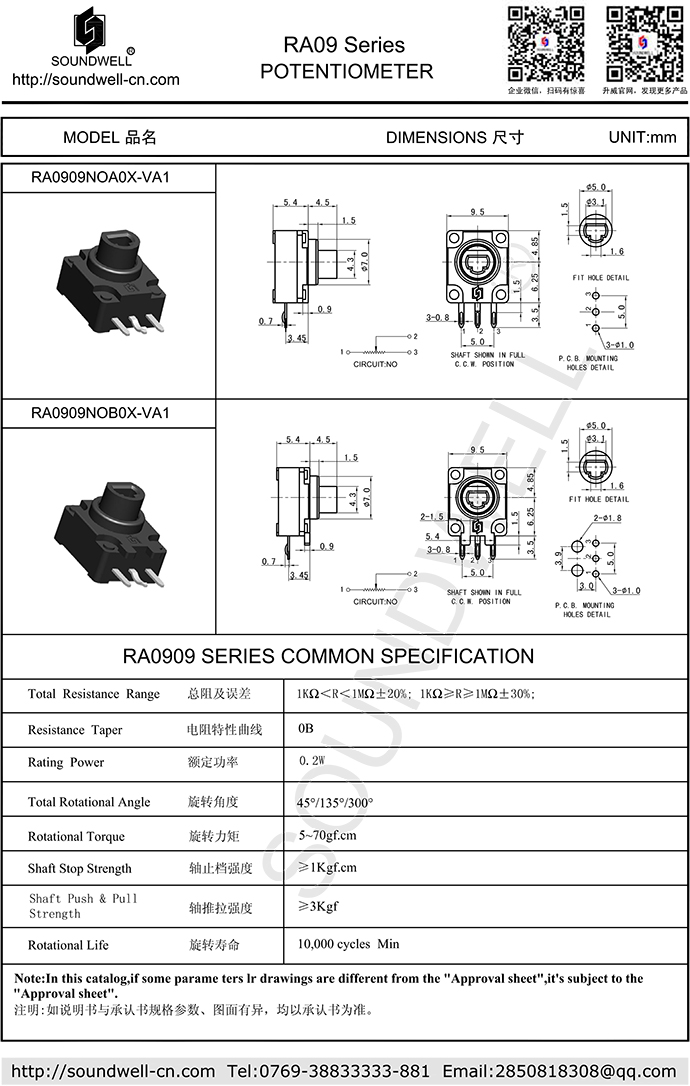

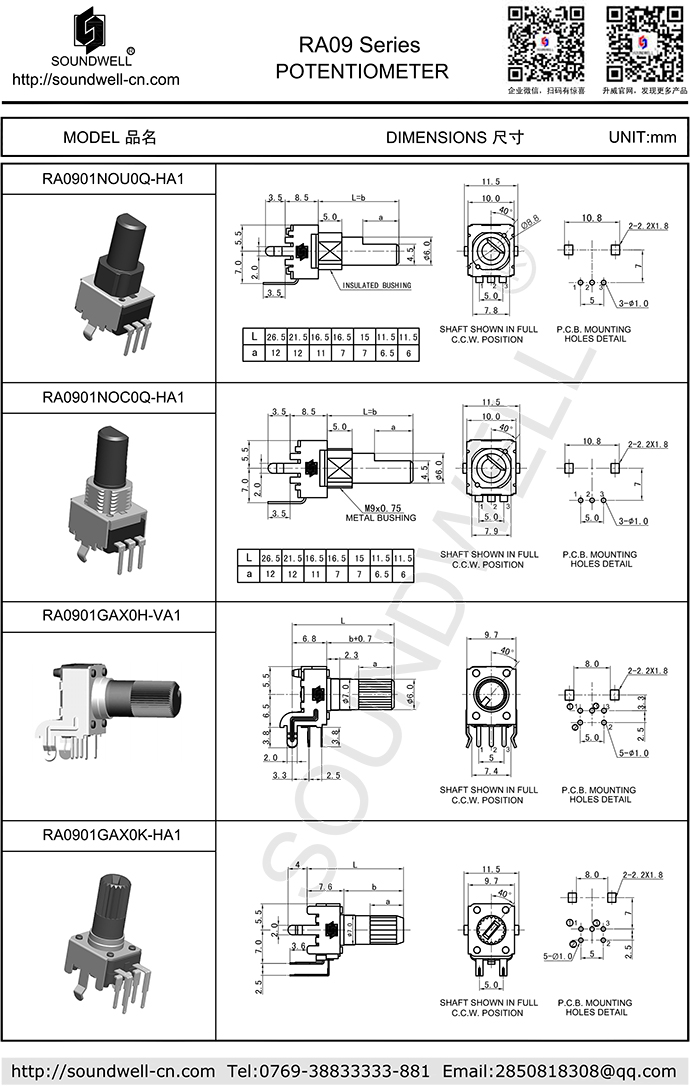

RA09 insulated shaft rotary potentiometer
| Potentiometer model： | RA09 series |
| Name： |
RA09 Insulated Shaft Rotary Potentiometer |
| Main Specifications: | Total resistance error: ±20% Full rotation angle: 280±10°/300±10° Rated power: 0.05W Operating temperature: -10°C~60°C Rotational life: 10,000 cycles Min |
| Product Features： |
Small size with insulated shaft; Reliable performance; Available in many different variants. |
| Applications： |
Professional audio, home appliances, lighting control and other related electronic devices, the main functions are to adjust the volume, balance transfer, pressure, temperature control, dimming effect. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 10~100gf.cm
2. Total Rotation Angle: 280°±10°/300°±10°
3. Shaft Stop Strength: ≥3.5Kgf.cm
4. Shaft Wobble (mm p-p): 0.7*L/20 Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Rated Power: 0.05W
4. Max. Operating Voltage: 50V AC/20V DC
5. Insulation Resistance: 100M? 1 Minute at DC 250V
6. Dielectric Voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
