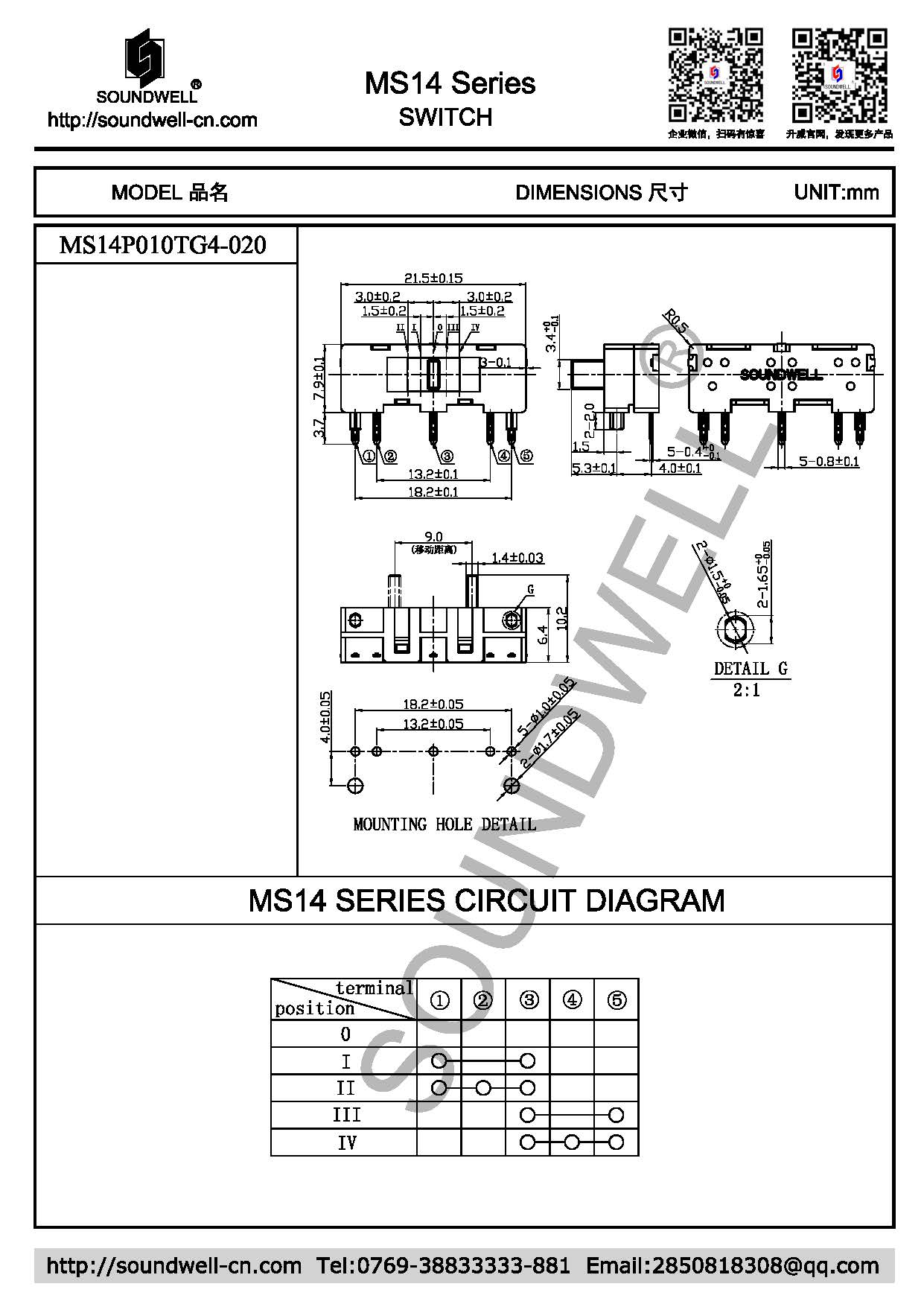

Switch model： |
MS14 series |
|
| Applications： |
Car sunroof switch, light switch and other related electronic equipment |
|
| Product Features: |
Long life with high precision. |
|
| Functions： |
It mainly plays a role in switching functions such as sunroof switch and light switch |
|
| Main Specifications: |
Travel: 9mm Rated current: 50mA Rated voltage: DC 5V~14V Operating temperature: -40℃～90℃ Operating life: 100,000 Min |
ONE、MECHANICAL CHARACTERISTIC
1. Sliding torque: 50gf Max
2. Slide travel: 9mm
3. Lever Stop Strength: ≥3Kgf
4. Lever push-pull strength: ≥2Kgf
TWO、ELECTRICAL CHARACTERISTIC
1. Contact Resistance: 100mΩ Max
2. Maximum operating current: 50mA
3. Rated voltage: DC 5V~14V
4. Dielectric Voltage: AC 500V (50~60Hz) 1 minute
5. Insulation resistance: 100M? 60s±5s at DC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 100,000 Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
