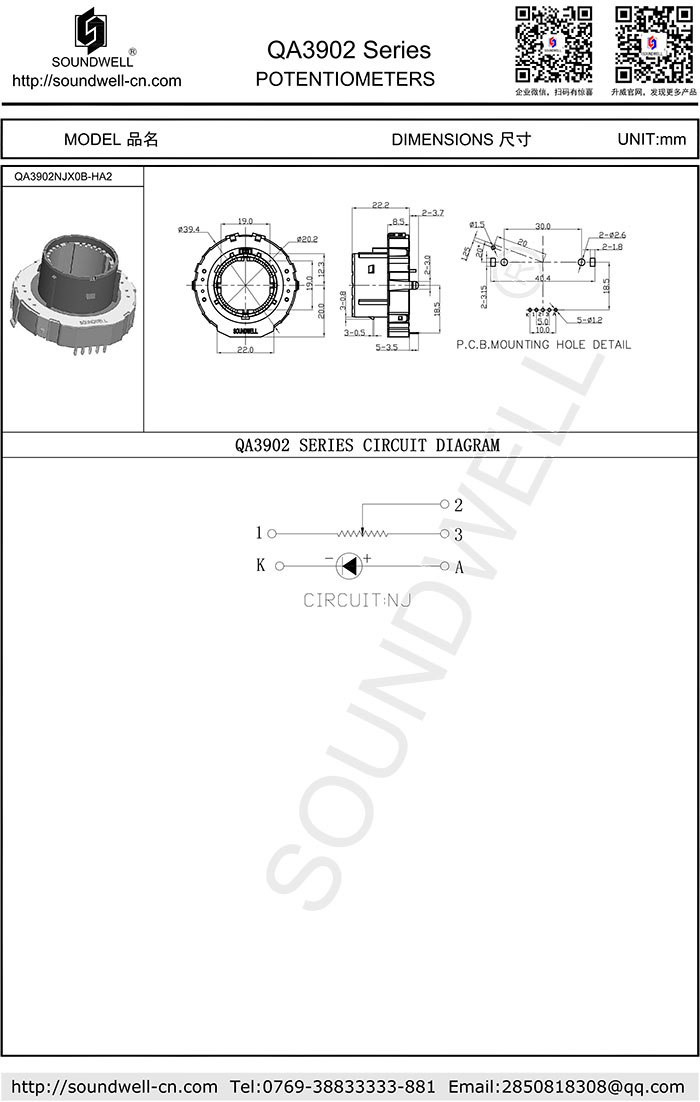

| Model: | QA3902 series |
| Name: |
QA3902 Hollow Potentiometer |
| Main Specifications: |
Size: 39mm Rated power: 0.125W Number of positions: 8 positions (225°±5°), 17 positions (225°±5°) Operating torque: 400±120gf.cm Rotational noise: ≤47mV LED color: yellow, orange, blue, red, white Operating temperature: -40℃~85℃ |
| Features: |
Superb rotational feel with reliable performance; Flexible design for switch mechanism; With LED and various position options; |
| Applications: |
Car air conditioning, appliances and other related electronic devices. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 400± 120 gf.cm
2. Number of Positions: 8 positions (225°±5°), 17 positions (225°±5°)
3. Shaft Stop Strength: ≥ 8 Kgf.cm
4. Shaft Wobble (mm p-p) : 0.3mm Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ±20%
3. Rating Power: 0.125W
4. Maximum operating voltage: 10V DC
5. Linearity at Each Position: ± 3%
6. Insulation Resistance: 50MΩ 1 Minute at DC 250V
7. Dielectric Voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational Life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
