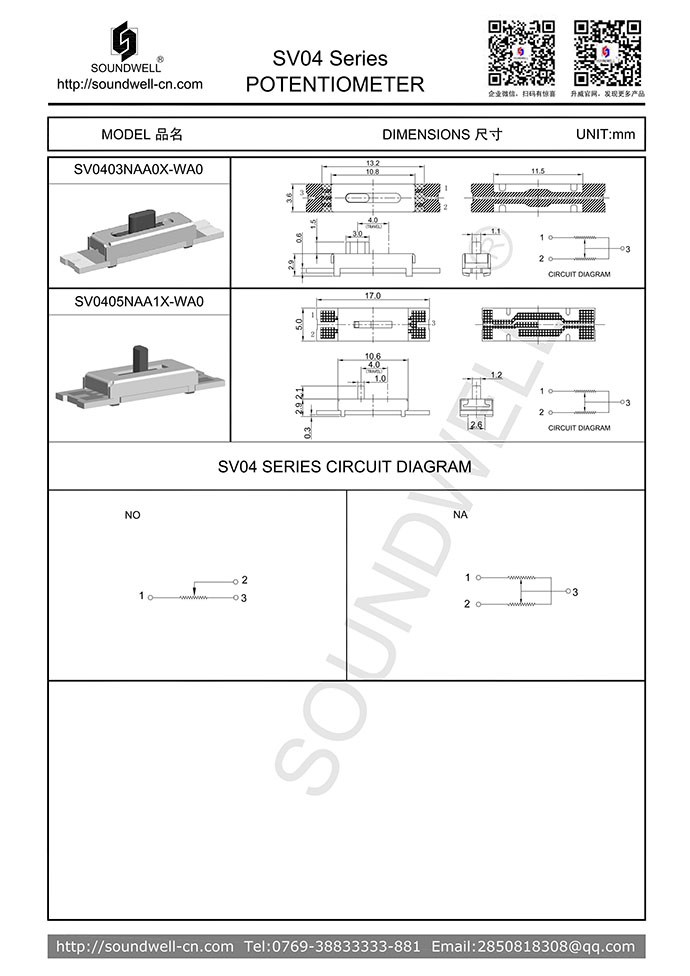

| Potentiometer model： | SV04 series |
| Name： |
4mm Mini SMD Slide Potentiometers |
| Main Specifications: |
Travel: 4mm； Resistance Tolerance: ±20%； Rated power: 0.005W； Operating temperature: -10℃~70℃； Operating life: 5,000 Min； |
| Product Features： |
Small size with high precision; |
| Applications： |
Volume control for headphones; |
ONE、MECHANICAL CHARACTERISTIC
1. Operating Force: 10~200gf.cm
2. Slide Travel: 4 ±0.5mm
3. Lever Stop Strength: 3Kgf
4. Lever Wobble (mm p-p): 2(2XL/25) Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: B
3. Power rating: 0.005W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC100V
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 5,000 Min
Note: In this catalog, if some parameters or drawings are different from the "Approval
sheet", it's subject to the "Approval sheet".
